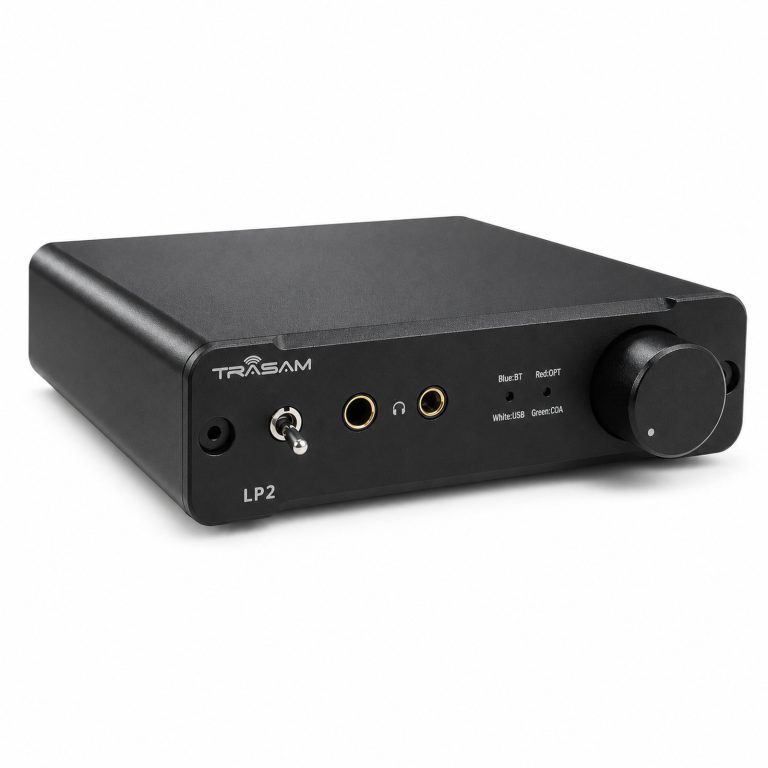

Compact Bluetooth DAC & headphone amplifier with dual ES9039Q2M DAC chips, XMOS XU316, and full XLR/RCA/4.4mm connectivity.
$289.00
The TRASAM LP2 brings studio-grade decoding and powerful headphone amplification into one compact desktop system. Dual ES9039Q2M DAC chips and a 3rd-generation XMOS XU316 processor deliver clean, detailed sound across every input.
Twin ESS flagship DAC chips decode PCM up to 768kHz/32bit and native DSD512.
The 16-core XU316 processor handles asynchronous USB audio with ultra-low jitter.
Qualcomm QCC3084 supports LDAC, aptX HD, aptX Adaptive, aptX, AAC and SBC.
USB, optical and coaxial inputs feed balanced XLR and RCA preamp outputs, plus 3.5mm single-ended and 4.4mm balanced headphone outputs.
Three OPA1612 op-amps drive 16–300Ω headphones single-ended and 16–600Ω balanced.
| DAC | ES9039Q2M × 2 |
|---|---|
| USB Processor | XMOS XU316 (16-core) |
| Op-Amps | OPA1612 × 3 |
| Bluetooth | QCC3084 · BT 5.4 · LDAC / aptX HD / aptX Adaptive / aptX / AAC / SBC |
| USB Audio | DSD512 · PCM 768kHz / 32bit |
| Optical Input | PCM 192kHz / 24bit |
| Coaxial Input | PCM 192kHz / 24bit |
| Preamp Output | XLR (balanced) + RCA |
| Headphone Output | 3.5mm single-ended + 4.4mm balanced |
| Headphone Impedance | 16–300Ω (SE) / 16–600Ω (balanced) |
| XLR Output | 4.2Vrms · SNR 120dB · THD+N -100dB |
| Power | 12V adapter |
| Color | Black · aluminum chassis |
The LP2 is a step up: dual ES9039Q2M DAC chips, an XMOS XU316 USB controller, full MQA support, higher-resolution Bluetooth (LDAC and aptX Adaptive), and an XLR balanced preamp output.
USB-B (DSD512 / PCM 768kHz), optical, coaxial, and Bluetooth 5.4 with LDAC, aptX Adaptive, aptX HD, AAC and SBC.
Yes. Use the RCA or XLR preamp outputs to connect active speakers or a separate amplifier.
Yes. Use the optical or coaxial input with TVs, PS5, Xbox, and set-top boxes.
The 4.4mm balanced and 3.5mm outputs handle most headphones up to 300 ohms with ease.
